BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

Anping Source Wire Mesh Co.,Ltd
Contact Now

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

  • 1
  • 2
  • 3

Brand Name : Source Wire Mesh

Model Number : UJ-RBW005

Certification : ISO9001

Place of Origin : Anping,China

MOQ : 50 coils

Price : $1200.00-$1400.00/TON

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Ton/Tons per Month

Delivery Time : 10 days

Packaging Details : waterproof paper inner, woven bag outside or with carton for Low price concertina hot dipped galvanized razor barbed wire

Product name : Coil diameter 450MM BTO-22 PVC Powder Coating Razor Barbed Wire

Material : PVC Coated

Type : Razor Barbed Wire

Coil Type : Cross Type Concertina Wire

Razor Type : Bto-10 Bto-22 CBT-60 CBT-65

Razor thickness : 0.5mm or as request

Barb Length : 10mm-65mm

Coil Diameter : 360-1000mm

Stretched Length : 8-12m

Zinc coating : 60-270g/m2

Contact Now

Coil diameter 450MM BTO-22 PVC Powder Coating Razor Barbed Wire

Razor Barbed Wire Product Description:

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Concertina Wire Materials:


Blade: steel plate by one-time punching moulding
or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire
hot dipped galvanized steel wire or stainless steel wire

Specification List:

Razor Wire Size Specifications
Peference Model
Thickness (mm)
Wire Diameter (mm)
Barb Length
(mm)
Bard Width
(mm)
Bard Spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
02±1
15±1
34±1
BTO-28
0.5±0.05
2.5±0.1
28
15
45±1
CBT-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1
Outside Diameter
No. of Loops
Standard Length per Coil
Razor Type
Notes

450mm
33
7M-8M
CBT-60, 65
Single Coil
500mm
56
12M-13M
CBT-60, 65
Single Coil
700mm
56
13M-14M
CBT-60, 65
Single Coil
960mm
56
14M-15M
CBT-60, 65
Single Coil
450mm
56
8M-9M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
500mm
56
9M-10M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
10M-11M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
8M-10M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
700mm
56
10M-12M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
800mm
56
11M-13M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
900mm
56
12M-14M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
960mm
56
13M-15M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
980mm
56
14M-16M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

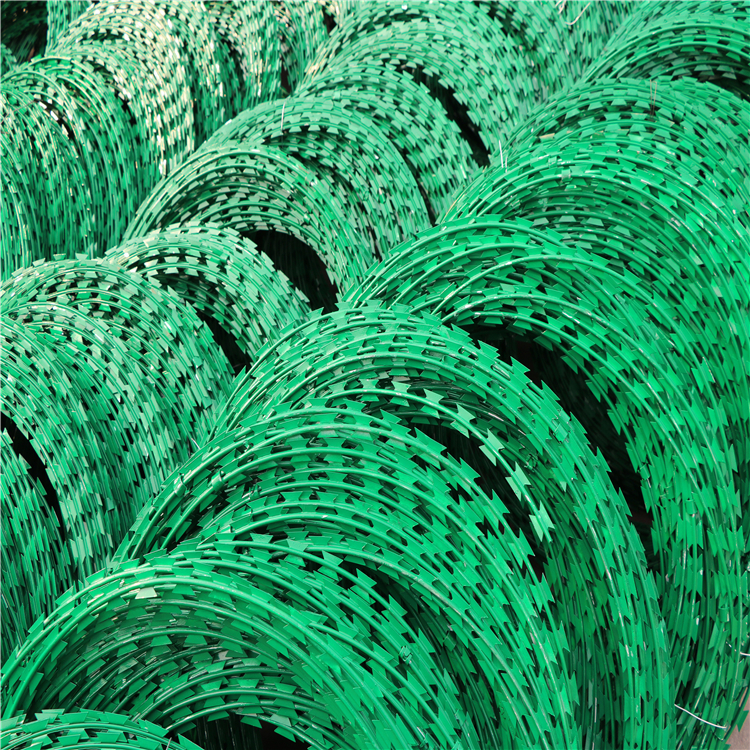

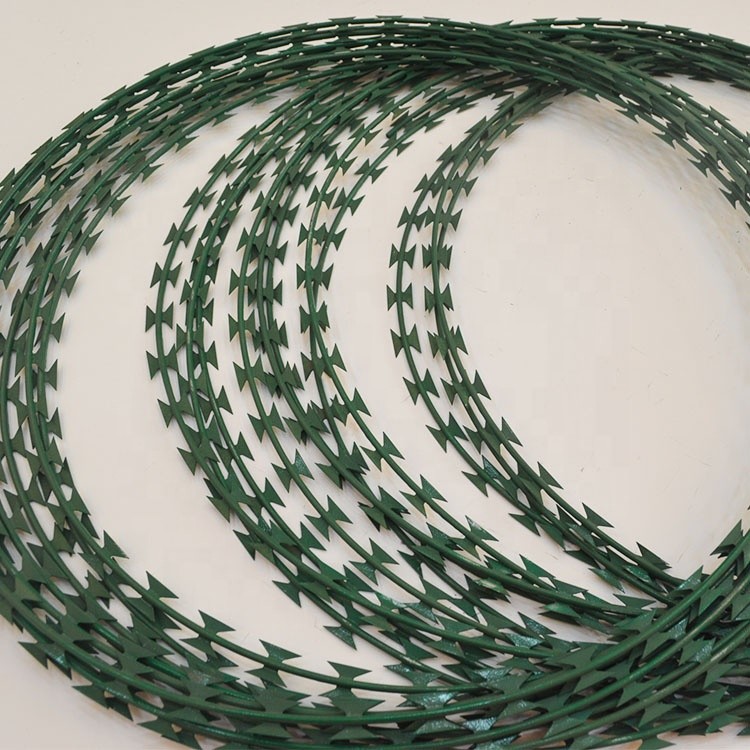

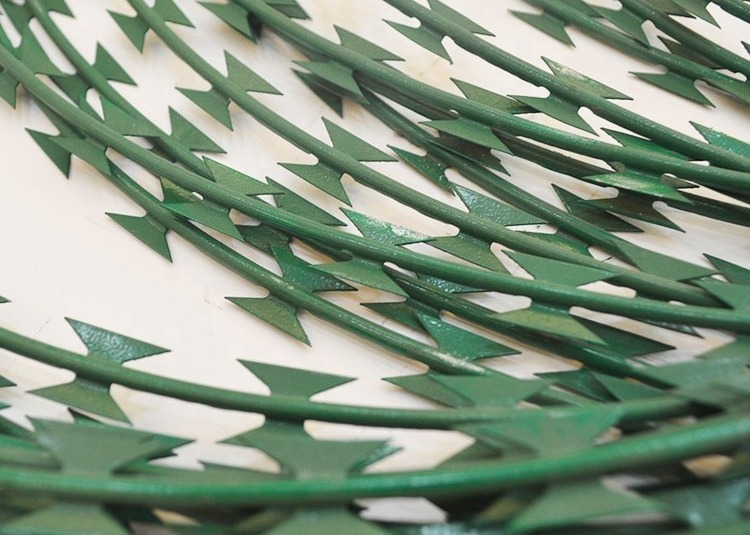

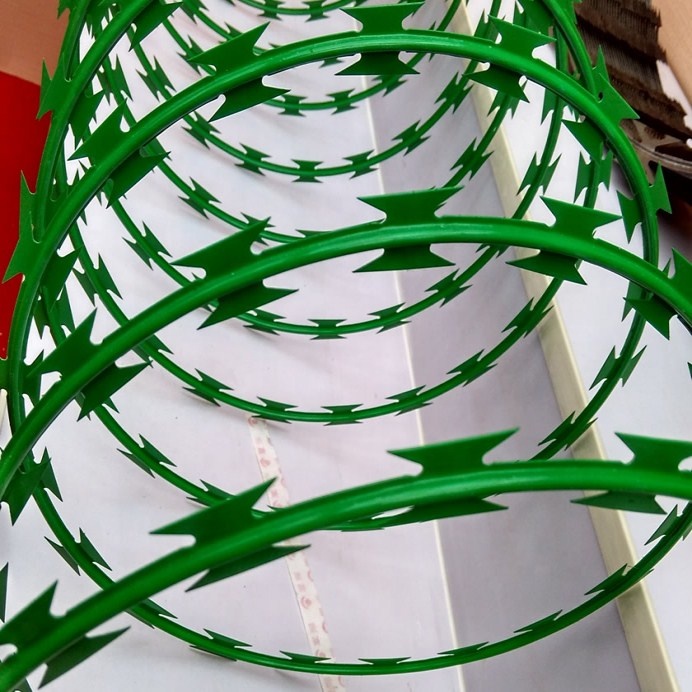

Product Images:

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

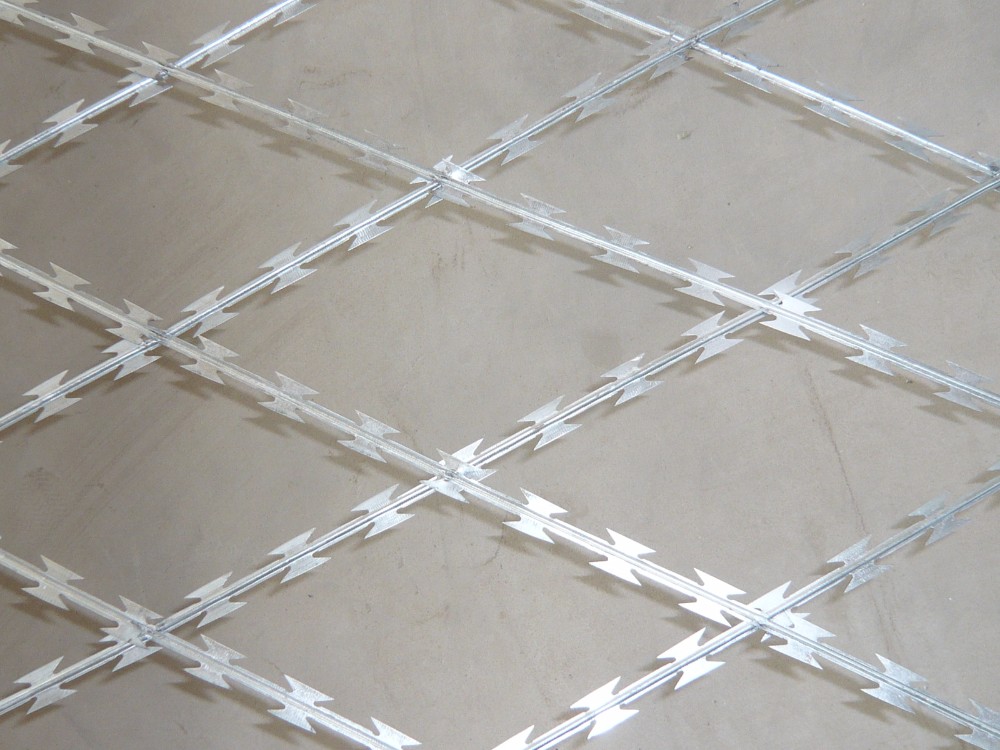

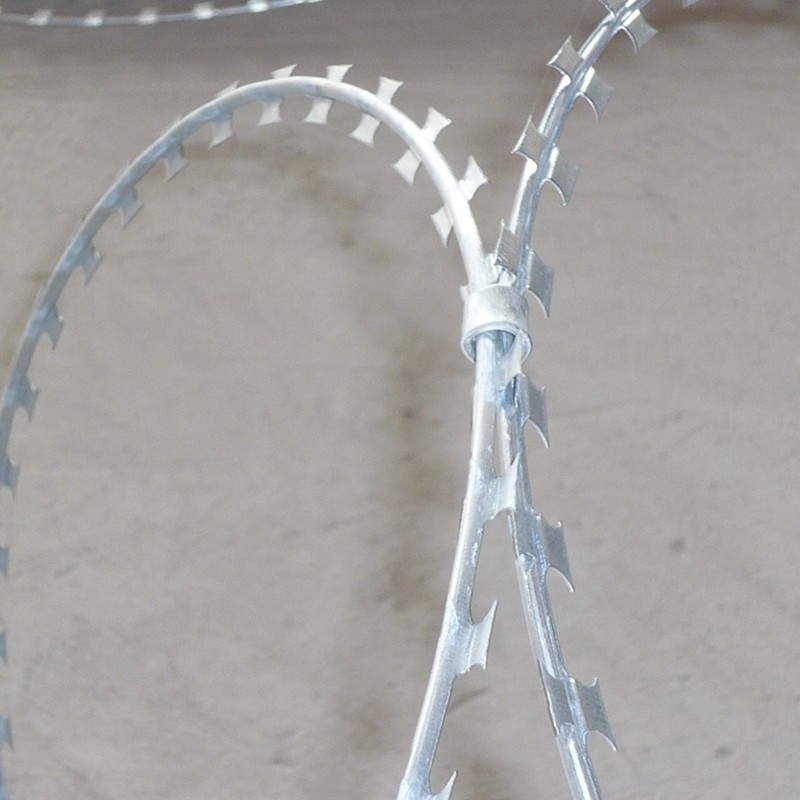

Concertina Wire Type

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

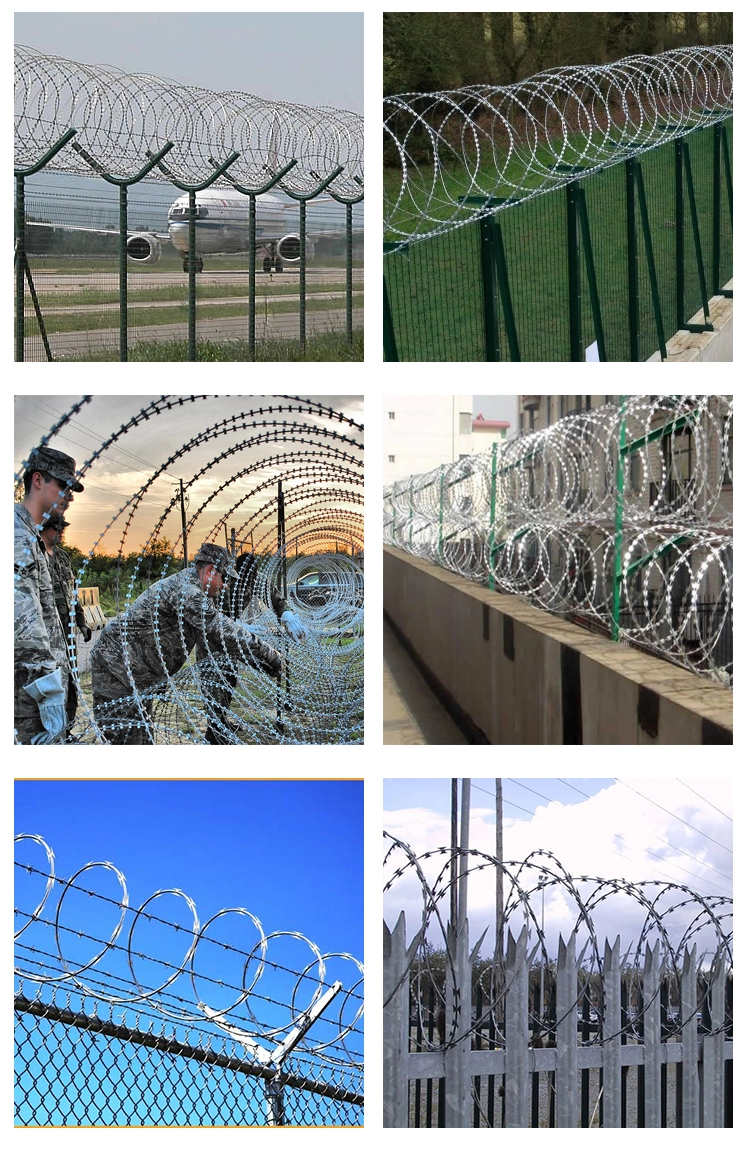

Concertina Wire Use:

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

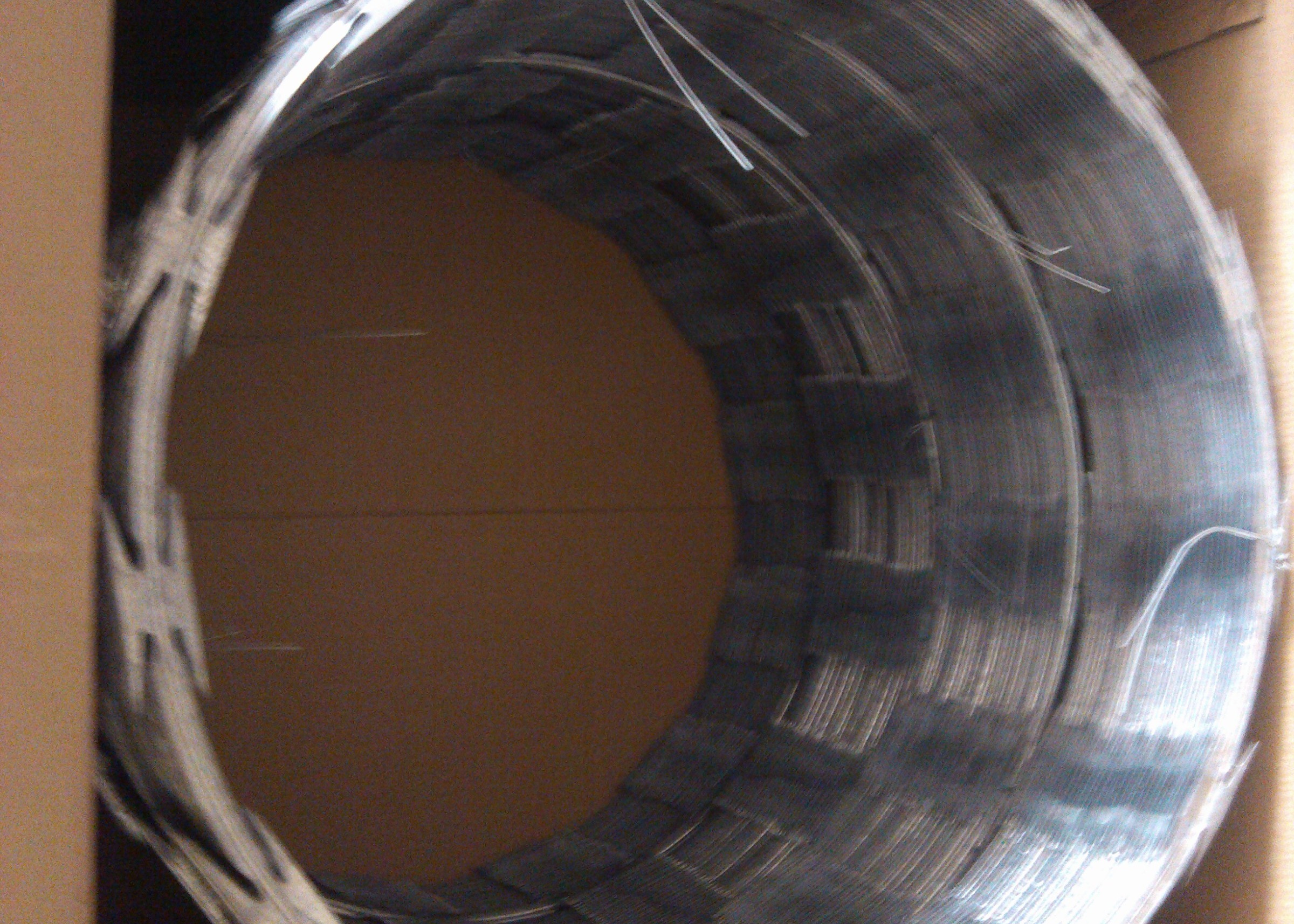

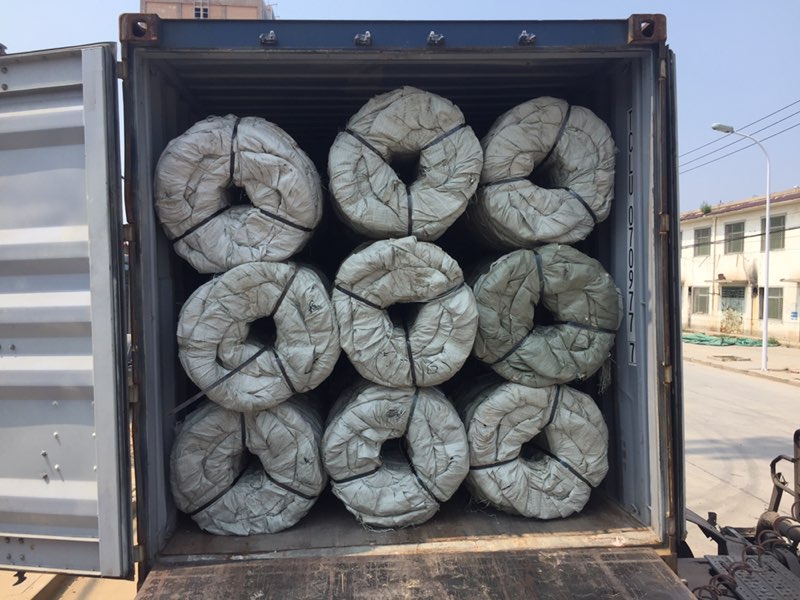

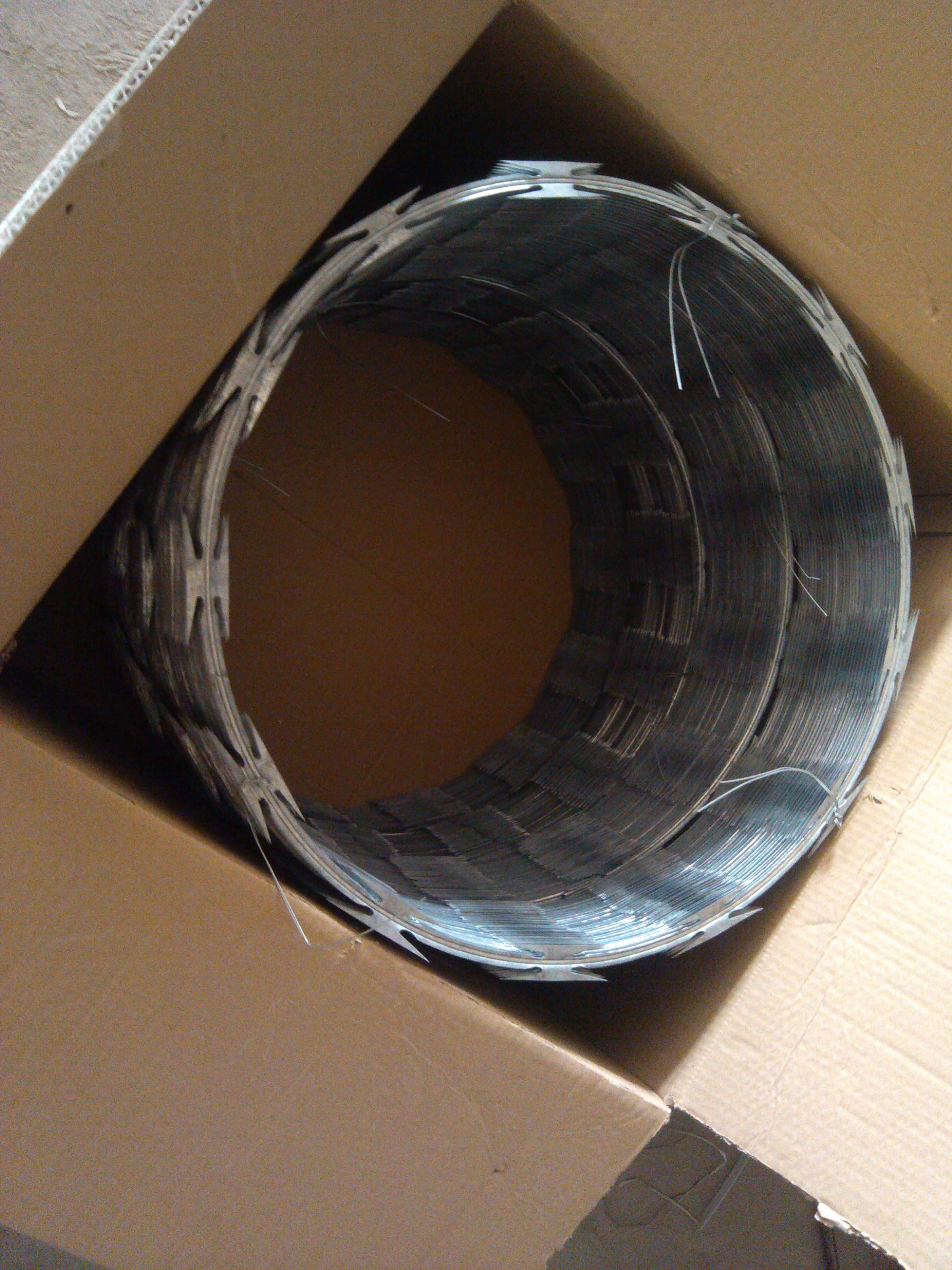

Packing & Delivery:

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

Our company was established in 2002. Mainly producing wire mesh products, our company is a synthetic enterprise which integrates production, research and foreign trade together. Our main products are Stainless Steel Wire Mesh,Decorative Wire Mesh,Welded Wire Mesh,Razor Barbed Wire and sintering mesh ,hexagonal mesh, sintering mesh, and further processed products which are commonly exported to Korea. Our products are well distributed to America, Europe, the Middle East, Southeast Asia and Africa markets. We sincerely invite you to visit our factory and make good benefits for both of us.
